Description

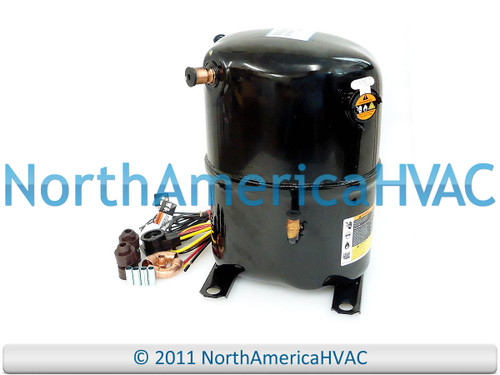

This is a 1.5 Ton 208/220 Volts 1-Phase Direct Factory Replacement Copeland Scroll Compressor. The Copeland Model # is CR18K6E-PFV-875. It is rated at 18,000 BTU. It is designed to replace the obsolete part numbers listed in the title. In some instances, small piping changes may be required. Thanks for looking and good luck!
Tonnage: 1.5
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4
Line Connection Discharge ID (In) 3/8
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Application OEM A/C Equipments.
Includes Crankcase HeaterPartial List of Goodman/Janitrol Units that use this Item: CPLE18-1, CLT24-1, CLQ24-1
TECHNICAL SPECIFICATIONS.
Tonnage: 1.5
Volts 60 Hz 208/230-1.
Phase 1.
Refrigerant Type R-22.
Line Connection Suction ID (In) 3/4
Line Connection Discharge ID (In) 3/8
Base Mounting Centers (In) 7 1/2 x 7 1/2.
Application OEM A/C Equipments.
Includes Crankcase HeaterPartial List of Goodman/Janitrol Units that use this Item: CPLE18-1, CLT24-1, CLQ24-1
To install a Compressor PROPERLY you need to have AND use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. All Sales are Final! There are NO WARRANTIES! Compressors Should be installed by a qualified Heating Air Conditioning Tech.
Function:
Compressors compress refrigerants (freon) from a gas state into a liquid state and then pump it through the freon lines.
Replaces Old Part #s:
Repair Difficulty Level:
Partial List of Units that Use This Item:
