OEM 1/6 HP Condenser FAN MOTOR Replaces Emerson K55HXCYS-6694 K55HXMMB-4296 K55HXLPJ-4051 230

(1 review) Write a Review
Shipping:
Calculated at Checkout
$328.99
Frequently bought together:

Description

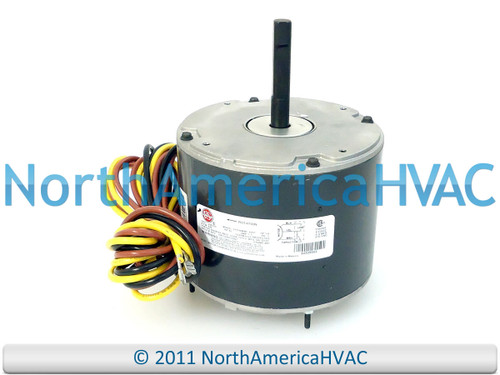

This is a BRAND NEW OEM Emerson ICP/Heil/Tempstar/Comfort Maker/Sears/Arcoaire Condenser FAN MOTOR. The ICP/Heil/Tempstar part # is 34329502. The Emerson # is K55HXMMC-4297. It's 1/6 HP 208-230v 825 RPM. The motor is 5 5/8" in diameter (Frame 48Y). The shaft extends 2.8" out of the motor. The motor leads are 6' long. Thanks for looking and good luck!
Function:
An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.
Replaces Old Part #s:
K55HXCYS-6694 K55HXMMB-4296 K55HXLPJ-4051
Repair Difficulty Level:
difficulty graph
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
View AllClose

Additional Information

HP Rating:
1/6
VAC:
230v
View AllClose

1 Review

  • 5
    Nice and easy install

    Posted by Jingrong Yang on 21st Sep 2020 17:56

    Got this and installed it super easy. The only setup mishap I had was that I didn't understand the direction arrow. So I got a CW fan, but that was an easy fix. Instead of putting the brown wire on the FAN terminal, put it on the C terminal . Instead of putting the yellow wire on the C terminal, put it on the FAN terminal. Another tip - instead of struggling with pulling your old fan out, you should just purchase your fan when you buy a new motor. Save you a lot of frustration.
