Description

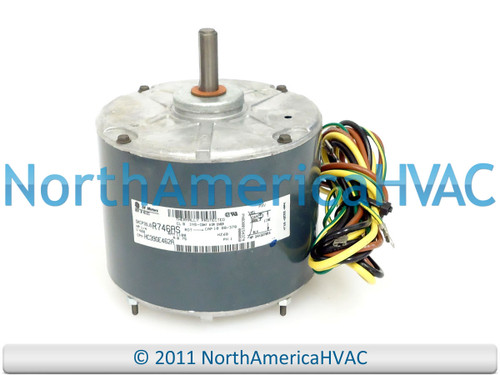

This is a?áBRAND NEW?áGE Genteq?á?áCarrier/Bryant/Payne FAN MOTOR.?áThis single phase motor is rated at 1/4 HP, 460v and 1100 RPM.?á?áThe motor is 5 5/8" in diameter (Frame 48Y).?á The shaft extends 1.5" out of the motor.?á?áIf the shaft is?áfacing up (as seen in the picture), the rotation is counter clockwise.?á It uses a?á10 uf 370 volt capacitor.?á It replaced the old part numbers listed below.
Function:
An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.
Replaces Old Part #s:
5KCP39JGR746AS
Repair Difficulty Level:
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
