Description

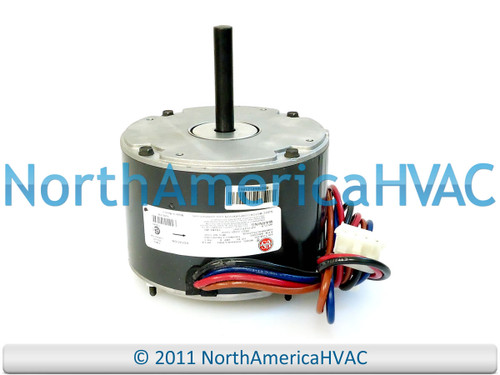

This is a BRAND NEW Emerson ICP/Heil/Tempstar/Comfort Maker/Sears/Kenmore 2-Speed Condenser FAN MOTOR. The part # is 1086396 (or HQ1086396EM & HC35GZ002(B)). & Emerson # K55HXHEA-8583. It's 1/8 HP, 208-230v, 840 RPM. The motor is 5 5/8" in diameter (Frame 48Y)- not 5 5/8" in diameter. The shaft extends 2.5" out of the motor. If the shaft is facing up (as seen in the picture), rotation is Counter Clock-Wise. The motor has a 4 wires going into a plastic plug that can be used or cut off. Thanks for looking and good luck!
Function:
An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.
Replaces Old Part #s:
K55HXHEA-8583
Repair Difficulty Level:
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
