Description

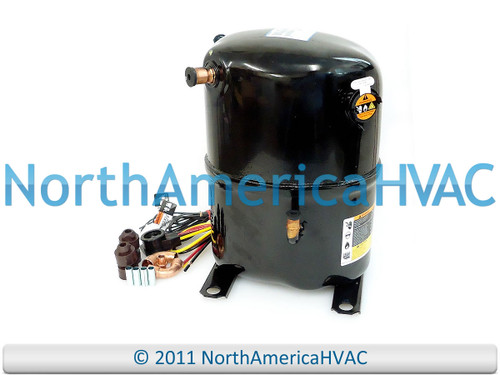

This is a 3.5-4 Ton 208/220 Volts 1-Phase Direct Factory Replacement Copeland Scroll Compressor. The Copeland Model # is CR42K6E-PFV-875. It is rated at 42,000 BTU. It is designed to replace the obsolete part numbers listed in the title. In some instances, small piping changes may be required. Thanks for looking and good luck!
Tonnage:3-1/2 to 4 Ton Depending on Equipment Models
Voltage:208/230.
Running Current Amps:20.5
Line Connection Discharge Inside Diameter 1/2 Inch.
Line Connection Suction Inside Diameter 7/8 Inch.
Base Mount Hole Center Size 7-1/2 x 7-1/2 Inches.
Length 9-7/16 Inches.
Height 15-3/16 Inches.
Width 9 Inches.
Refrigerant: R22.
Series:CR
Crank Case Heater:Yes.
Run Capacitor is 50uf 440 volt.Most condensing unit capacitors are dual capacitors, meaning they operate thecompressor and the fan. To purchase the correct capacitor you will need toknow the uf rating on the fan.
Start Capacitor. 189-227 330Volt
TECHNICAL SPECIFICATIONS.
Tonnage:3-1/2 to 4 Ton Depending on Equipment Models
Voltage:208/230.
Running Current Amps:20.5
Line Connection Discharge Inside Diameter 1/2 Inch.
Line Connection Suction Inside Diameter 7/8 Inch.
Base Mount Hole Center Size 7-1/2 x 7-1/2 Inches.
Length 9-7/16 Inches.
Height 15-3/16 Inches.
Width 9 Inches.
Refrigerant: R22.
Series:CR
Crank Case Heater:Yes.
Run Capacitor is 50uf 440 volt.Most condensing unit capacitors are dual capacitors, meaning they operate thecompressor and the fan. To purchase the correct capacitor you will need toknow the uf rating on the fan.
Start Capacitor. 189-227 330Volt
To install a Compressor PROPERLY you need to have AND use the proper equipment and use proper installation technique. If you are not familiar with these techniques or you do not have the proper equipment then you SHOULD have a qualified HVAC tech to install your new compressor. All Sales are Final! There are NO WARRANTIES! Compressors Should be installed by a qualified Heating Air Conditioning Tech.
Function:
Compressors compress refrigerants (freon) from a gas state into a liquid state and then pump it through the freon lines.
Replaces Old Part #s:
Repair Difficulty Level:
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
