Description

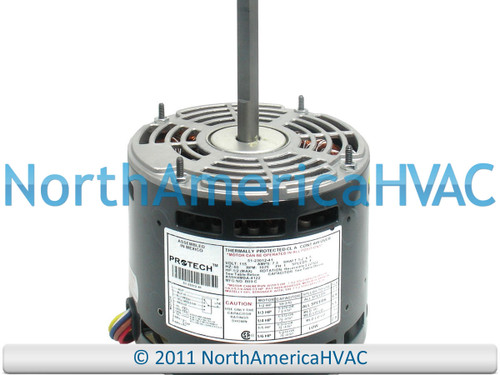

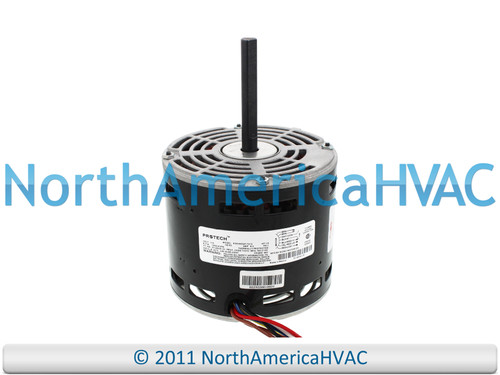

This is a BRAND NEW OEM Rheem/Weather King/Corsaire/RUUD 4 Speed Protech Blower Motor. It is designed by Rheem/Ruud to replace many older motors. The Horse Power range is 1/2-1/6 depending on how you wire it. The Rheem/Weather King/Corsaire/RUUD part number is 51-23012-41 (OEM Replacement for old part #s 51-24144-01 & 51-26158-01) This motor is 5 5/8" in diameter (Frame 48Y) and has a wiring diagram on the side of the motor. The rotation is reversible. Motor can be mounted with a belly band around the center or using Rheem's 4 mounting arms that come screwed into some OEM Rheem/Ruud motors. The motor you are purchasing is brand new. When installing a new motor the motor manufactures highly recommend that you install a new capacitor at the same time. Old capacitors can become weak over time and have a negative effect on the new motor. We have the capacitors that go with this motor in our store. You can locate the one you need buy using the information listed below. ???/? If replacing a ½HP motor search for Capacitor Part # CAP011003O If replacing a 1/3 HP motor search for Capacitor Part # CAP010753O If replacing a 1/4 1/5 or 1/6 HP motor search for Capacitor Part # CAP010503O. Thanks for looking and good luck!
Function:
An electric motor converts electrical energy into mechanical energy. In an HVAC system, motors typically turn the air conditioning fan blade and the furnace blower motor. Newer high efficient motors, such as X13 and ECM motors, have "end caps" that control the motor speeds. These can be removed and replaced separately.
Replaces Old Part #s:
51-24144-01 51-26158-01
Repair Difficulty Level:
Partial List of Units that Use This Item:
Hit Ctrl+F and enter your model number for a quick search!
